Profilodomi has developed  various systems of mounting structures for open field areas. The structures have been tested for years in real demanding conditions of soil and weather. All products are made of galvanized steel, clamps are made of  inox (stainless) steel. The piles are IPE120 steel beam Hot Deep Galvanized. There are 3 major types: PD.4I.2P,  PD.6I.2P, PD.2H.3P .

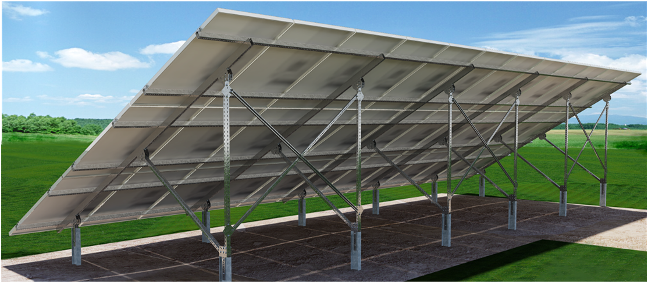

TYPE PD.4I.2P

Standard inclination 20° to 40°



One pile foundation for 2 panels portrait



Low cost + maximum strength !

Maintain structure durability, regardless of inclination settings.

IPE120 steel beam pile Hot Deep Galvanized,

All parts are made of high strength galvanized steel.

3 points of joint — No welds.

Diagonal braces.

Clamps are made of stainless steel.

Assembly drawings and installation guides.

TUV Certification — Eurocode 1.3.9 structure analysis



Stainless Steel clamps



Strong Rafter

 with 3 points of join



Diagonal braces

IPE 120 pile

Hot Deep Galvanized

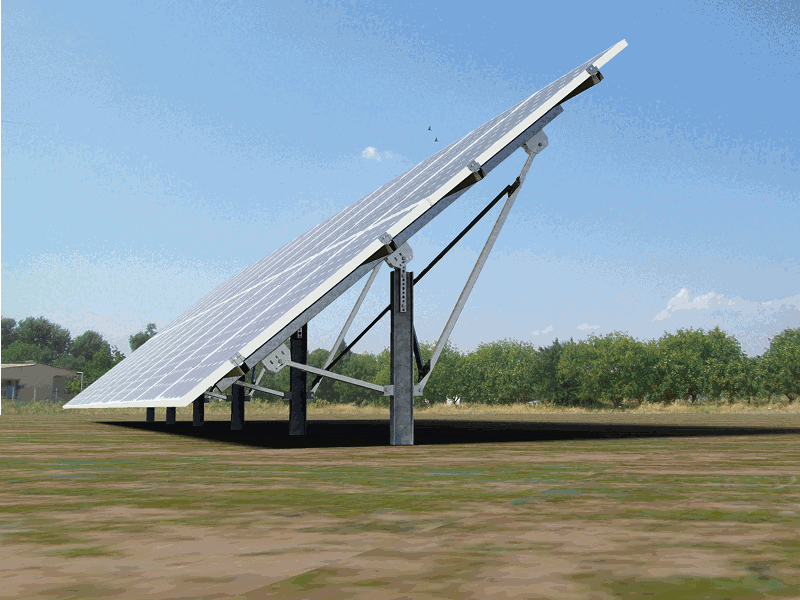

TYPE PD.6I.2P

Adjustable inclination 20° ~ 40°

(Summer - Winter change)



One pile foundation for 2 panels portrait

Low cost   + maximum strength + Adjustable inclination.

Maintain structure durability regardless of inclination settings.

IPE120 steel beam pile Hot Deep Galvanized.

All parts are made of high strength galvanized steel.

3 points of joint — No welds.

Diagonal braces.

Clamps are made of stainless steel.

Assembly drawings and installation guides.

TUV Certification — Eurocode 1, 3, 9 structure analysis

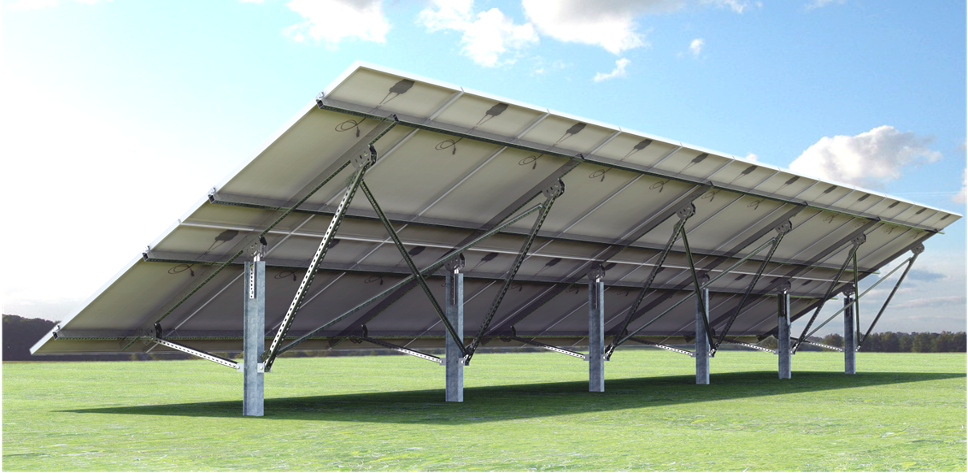

TYPE PD.2H.3P

Standard inclination



Two piles foundation

for 3 panels portrait



Low cost   +  maximum strength.



Maintain structure durability, regardless of tilt settings.



Two IPE120 steel beam pile Hot Deep Galvanized,



All parts are made of high strength galvanized steel - Certifications and structure analysis
