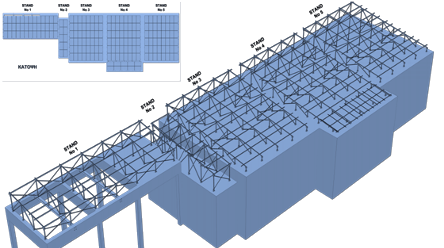

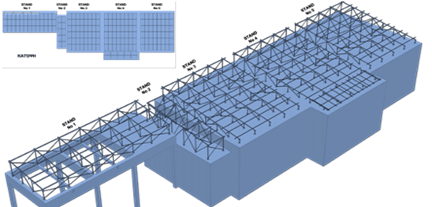

Profidomi has developed various kinds of mounting structures for residential roofs buildings, tile roofs, flat areas like terraces or even on the walls. There is a list with standard types for 1 to 3 panels portrait or landscape for standard inclination of 20°, 25°, 30 ° and 3 to 6 panels portrait with maximum height 2.5m. There is also a system with hooks for roof tiles. Furthermore, the components of the mounting system can be joined in many different combinations. This gives the advantage to create customized mounting structures suitable for almost any roof or terrace for different inclination or minimum and maximum height according to customer's demands. Profilodomi has full range of standard structures but also the customized structures can be designed and supplied on demand. |
|

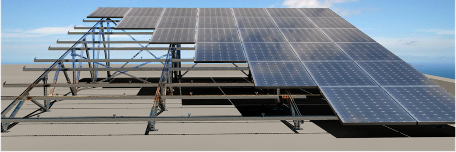

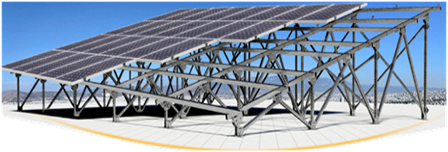

With Profilodomi system , it is very simple to create mounting structures for almost any kind of roof or terrace. In the list of small and standard mounting structures there are structures from 1 to 6 panels portrait and landscape. Variant structures can be created by changing dimensions and inclination on demand. |
|

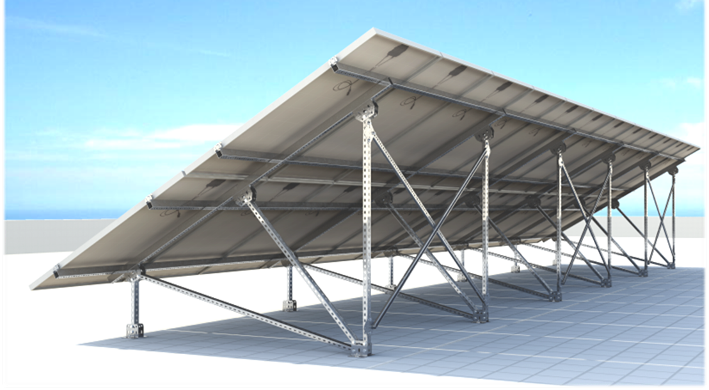

(1) Strong inclination rail 40x60x2mm made by Galvanized steel
|
|
(2) Inner and outer clamps are made by stainless steel |
|
(3) Many points of supporting (depends of the structure and the modules number)
|
|
(6) Strong plates with 2 holes for foundation in concrete
|
|
(4) Diagonal braces |
|
(5) Height and inclination can be re-designed on demand |
|
(1) |
|
(1) |
|
(2) |
|
(2) |
|
(2) |
|
(2) |
|
(3) |
|
(3) |
|
(3) |
|
(4) |
|
(4) |
|
(4) |
|
(5) |
|
(6) |
|
(6) |
